Self-Retracting
Lifelines |
|
|
Gemtor self-retracting lifelines and lanyards automatically extend and retract permitting a worker freedom of movement while preventing slack line and providing continuous protection against falls.
Gemtor self-retracting lifelines and lanyards are available in a full range of configurations to suit virtually any work application. |
|
Common Features of all
Gemtor Sentry Self-Retracting Lifelines: |
| |
• Spring loaded drum with sealed ball bearings for smooth cable extension and retraction
• Weather sealed stamped steel or cast aluminum housing
• 3/16" galvanized steel cable, stainless steel cable or
Tech 12 non-conductive synthetic rope
•
lifeline (except SWL
series)
• Compact and lightweight
• Internal components made of bronze, stainless steel and aluminum
• Impact indicator to warn user that unit has arrested a fall.
Please Note: Retractable
lifelines and lanyards require a carabiner (not included) for attachment
to anchorage. |
|
 |
SRL Series
with steel housing and
cable lifeline (Tech 12 non-conductive rope available)
Available Models:
SRL-30 -
30' long galvanized steel lifeline,
16 lbs.
SRL-30S - 30' long stainless steel lifeline, 16 lbs.
SRL-50 - 50' long galvanized steel lifeline, 19 lbs.
SRL-50S - 50' long stainless steel lifeline, 19 lbs.
SRL-65 - 65' long galvanized steel lifeline, 27 lbs.
SRL-65S - 65' long stainless steel lifeline, 27 lbs.
CSA Z259.2 approved model available upon request. |
|
Return
to top of page
|
 |
SL2 Series
with cast aluminum housing and cable lifeline
(Tech 12 non-conductive
rope available)
Available Models:
SL2-30 - 30' long galvanized steel lifeline, 20 lbs.
SL2-30S - 30' long stainless steel lifeline, 20 lbs.
SL2-50 - 50' long galvanized steel lifeline, 29 lbs.
SL2-50S - 50' long stainless steel lifeline, 29 lbs.
SL2-100 - 100' long galvanized steel lifeline, 45 lbs.
SL2-100S - 100' long stainless steel lifeline, 45 lbs.
CSA Z259.2 approved model available upon request.
|
|
Return
to top of page
|
 |
SWL Series
with 1" wide
polyester web lifeline
Available Models:
SWL-20 - Steel housing, 20' long web lifeline, 12 lbs.
SWL-30 - Steel housing, 30' long web lifeline, 14.5 lbs.
|
|
Return
to top of page
|
  |

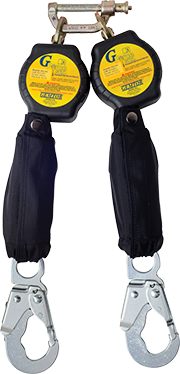

Fall Limiter/Self-Retracting Lanyard
Model # FLW -
Unlike our competitors
plastic and multi-piece extruded aluminum lightweight SRLs and fall
limiters, our cast aluminum FLW-11 can handle the rigors of everyday
use. Because of its nearly indestructible housing and its very light
weight, the Gemtor FLW is perfect for virtually all applications.
Whether you’re on a construction site, using a warehouse order picker,
in a manufacturing facility or performing maintenance, you will
appreciate all the FLW has to offer. The External energy absorber
provides an added level of security in the event that the device is
subjected to unusually high forces. The FLW-11 incorporates a
centrifugal braking system and external energy absorber that work
together to ensure that fall arrest forces do not exceed 900 lbs.
|
Download flyer (pdf) |
|
Return
to top of page
|
 |
Self-Retracting Lanyard
Model # RL-8 -
1 3/4" wide x 8' long, high visibility yellow polyester webbing with a swivel locking snaphook permanently attached. Unit locks within a few inches when a fall is sensed. Housing is made of heavy-duty steel with a chemical, environmental, and impact resistant PVC cover. |
|
Return
to top of page
|
|
Auxiliary
Equipment
|
|
Carabiners |
|
|
Model # 5105 -
Steel offset D-carabiner with
automatic lock
Overall length - 4 7/16”
Gate opening - 1”
Tensile strength - 10,000 lbs. |
|
Return
to top of page
|
 |
Model # 5107 -
Aluminum offset D-carabiner
with automatic lock
Overall length - 4 7/16”
Gate opening - 3/4”
Tensile strength - 5,000 lbs. |
|
Return
to top of page
|
 |
Model # 5710 -
Alloy steel large carabiner
with automatic lock
Overall length - 9 3/8”
Gate opening - 2”
Tensile strength - 5,000 lbs. |
|
Return
to top of page
|
 |
Model # 5741 -
Alloy steel, side opening
large carabiner with automatic lock
Overall length - 7 1/4”
Gate opening - 2”
Tensile strength - 9,000 lbs. |
|
Return
to top of page
|
 |
Model # 5742 - Aluminum, side opening large carabiner with triple
locking gate.
Overall length - 7 1/4”
Gate opening - 2”
Tensile strength - 9,000 lbs. |
|
Return
to top of page
|
|
Carrying
Bags |
 |
Model # WB1
- Carrying bag for Self-Retracting Lifelines, retrieval winches or other equipment. Made of nylon, has solid reinforced bottom with feet.
12" high x 12" wide x 20" long.
Model # WB2 -
Same as above except without reinforced bottom and feet
Model # CB1-
Used for carrying harnesses,
tools and other equipment.
Made of nylon, 10" high x 10" wide x 18" long. |
|
